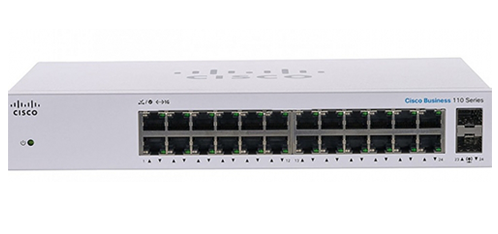

| Model |
CBS110-24T-EU |
| Performance |
| Switching capacity in gigabits per second (Gbps) |
48 Gbps |
| Capacity in millions of packets per second (mpps) (64-byte packets) |
35.7 mpps |
| General |
| Head-of-line (HOL) blocking |
HOL blocking prevention |
| MAC table |
2K |
| Jumbo frame |
9216 bytes |
| Quality of Service (QoS) |
802.1p priority based, 4 hardware queues, priority queuing and Weighted Round-Robin (WRR) |
| Loop detection |
Helps discover loops in the network to avoid broadcast storms |
| Cable diagnostics |
Quickly identify and troubleshoot network cable faults and/or shorts |
| Media-dependent interface |
Automatic Media Dependent Interface (MDI) and MDI crossover (MDI-X) |
| Hardware |
| Ports |
24 Gigabit Ethernet |
| 2 SFP (combo with 2 Gigabit Ethernet) |
| LEDs |
Power, link/activity (cable diagnostics, loop detection), Gigabit, PoE, Max PoE, if present |
| Cabling type |
Category 5e or better |
| Mounting options |
Desktop, wall-mount or rack mount |
| Physical security lock |
Kensington lock slot |
| Flash |
8MB |
| CPU |
400MHz ARM |
| CPU memory |
64MB |
| Packet buffer |
2 Mbit |
| Environmental |
| Unit dimensions (W x D x H) |
279 x 170 x 44 mm |
| Weight |
1.56kg |
| Power |
110-240VAC, 50-60 Hz, internal, universal |
| System power consumption |
110V=16.3W |
| 220V=16.34W |
| Heat dissipation (BTU/hr) |
55.75 |
| Green (power efficiency) |
Supports IEEE 802.3az on all copper Gigabit Ethernet ports |
| Compliance/certifications |
UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A |
| Operating temperature |
32° to 104°F (0° to 40°C) |
| Storage temperature |
–4° to 158°F (–20° to 70°C) |
| Operating humidity |
10% to 90%, relative, noncondensing |
| Storage humidity |
5% to 90%, relative, noncondensing |
| Acoustic noise and Mean Time Between Failures (MTBF) |
| Fan (number) |
Fanless |
| MTBF at 25°C (hours) |
524,296 |
