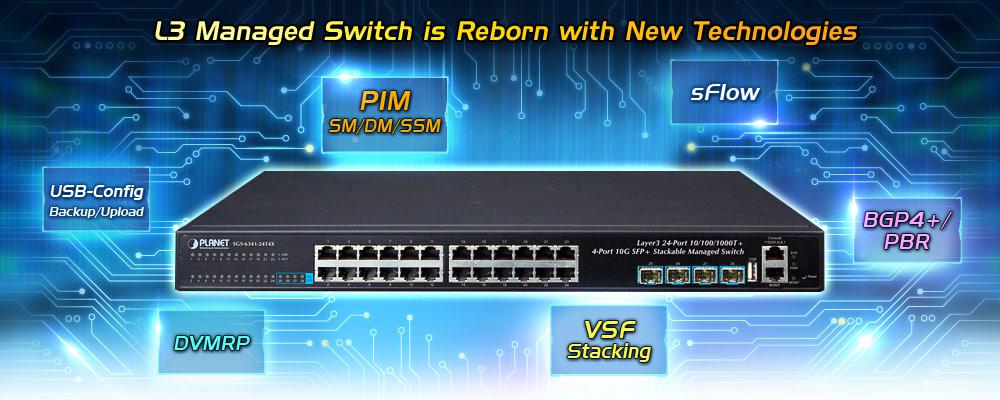

🚀 PLANET SGS-6341-24T4X – Switch L3 Quản Lý, Định Tuyến 10G, Hiệu Suất Cao
PLANET SGS-6341-24T4X là thiết bị chuyển mạch Gigabit lớp 3 có thể xếp chồng, hỗ trợ định tuyến tĩnh L3, RIP & OSPF, với giao diện uplink 10Gbps, lý tưởng cho mạng xương sống doanh nghiệp & trung tâm dữ liệu.
Với cấu trúc chuyển mạch 128Gbps, SGS-6341-24T4X đảm bảo hiệu suất mạnh mẽ để xử lý dữ liệu lớn, tối ưu hóa ISP, VoIP, phát trực tuyến video & AIoT.
🔹 Tính Năng Nổi Bật
✅ Hiệu suất mạnh mẽ, hỗ trợ 10Gbps
- 24 cổng Gigabit Ethernet 10/100/1000Mbps
- 4 cổng 10Gbps SFP+ (hỗ trợ module quang SFP/SFP+)
- Cấu trúc chuyển mạch 128Gbps, thông lượng tốc độ dây, giảm tắc nghẽn mạng
✅ Quản lý tập trung với công nghệ xếp chồng IP
- Hỗ trợ quản lý tối đa 24 thiết bị chỉ với một địa chỉ IP duy nhất
- Xếp chồng linh hoạt, bất kể vị trí hoặc loại thiết bị trong cùng một mạng
✅ Định tuyến L3 & Giao thức mạng tiên tiến
- Hỗ trợ định tuyến tĩnh L3, RIP v1/v2, OSPF
- Hỗ trợ VLAN linh hoạt, QoS nâng cao cho VoIP & Video Streaming
- Bảo mật mạng mạnh mẽ, phù hợp với doanh nghiệp & trung tâm dữ liệu
🔗 SGS-6341-24T4X là giải pháp lý tưởng để mở rộng mạng 10G với hiệu suất cao, dễ dàng quản lý & triển khai linh hoạt! 🚀
| Hardware Specifications |
| Hardware Version |
2 |
| Copper Ports |
24 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP+ Slots |
4 10GBASE-SR/LR SFP+ interfaces (port-25 to port-28)
Compatible with 1000BASE-SX/LX/BX SFP transceiver |
| Console |
1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
128Gbps/non-blocking |
| Switch Throughput |
95.23Mpps |
| Address Table |
16K MAC address table with auto learning function |
| ARP Table |
4K |
| Routing Table |
1024 (IPv4 + IPv6) |
| IP Interface |
1024 |
| ACL Table |
1024 |
| Shared Data Buffer |
1.5MB |
| Flow Control |
Back pressure for half duplex
IEEE 802.3x pause frame for full duplex |
| Jumbo Frame |
10KB |
| LED |
System:
PWR/DC/MGMT/SYS
Ports:
10/100/1000T RJ45 Port: LNK/ACT
1/10G SFP+ slot: LNK/ACT |
| Dimensions (W x D x H) |
440 x 240 x 43.6 mm, 1U height |
| Weight |
3170g |
| Power Consumption |
26 watts/88.66 BTU |
| Power Requirements |
AC 100~240V, 50/60Hz |
| Fan |
Fanless design |
| IPv4 Layer 3 Functions |
| IP Routing Protocol |
■ Static route
■ RIPv1/v2
■ OSPFv2
■ BGPv4
■ Policy-based routing (PBR)
■ LPM routing (MD5 authentication)
■ Hardware-based Layer 3 routing |
| Multicast Routing Protocol |
■ IGMP v1/v2/v3
■ DVMRP
■ PIM-DM/SM
■ PIM-SSM |
| Layer 3 Protocol |
■ VRRP v1/v3
■ ARP
■ ARP Proxy
■ IGMP Proxy |
| IPv6 Layer 3 Functions |
| IP Routing Protocol |
■ RIPng
■ OSPFv3
■ BGPv4+
■ IPv6 LPM Routing
■ IPv6 Policy-based Routing (PBR)
■ IPv6 VRRPv3
■ IPv6 URPF
■ IPv6 RA
■ Hardware-based Layer 3 routing |
| Multicast Routing Protocol |
■ PIM-SM/DM for IPv6
■ MLD for IPv6 (v1)
■ MLDv1/v2
■ MLD Snooping, 6 to 4 Tunnels
■ IPv6 Any Cast RP
■ Multicast receive control
■ Illegal multicast source detect |
| Layer 3 Protocol |
■ Configured Tunnels
■ ISATAP
■ GRE Tunnel |
| Other |
ICMPv6,ND,DNSv6 |
| Layer 2 Function |
| Port Configuration |
Port disable/enable
Auto-negotiation 10/100/1000Mbps full and half duplex mode selection
Flow control disable/enable
Bandwidth control on each port
Port loopback detect |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status and auto negotiation status |
| VLAN |
802.1Q tagged based VLAN, up to 4K VLAN groups
802.1ad Q-in-Q (VLAN stacking)
GVRP for VLAN management
Private VLAN Edge (PVE) supported
Protocol-based VLAN
MAC-based VLAN
IP subnet VLAN |
| Bandwidth Control |
TX/RX/Both |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk
Supports 128 groups with 8 ports per trunk group |
| QoS |
8 priority queues on all switch ports
Supports strict priority and Weighted Round Robin (WRR) CoS policies
Traffic classification:
- IEEE 802.1p CoS/ToS
- IPv4/IPv6 DSCP
- Port-based WRR |
| Ring |
Supports ITU-G G.8032 ERPS |
| Multicast |
IPv4 IGMP v1/v2/v3 snooping
IPv4 Querier mode support
IPv6 MLD v1/v2 snooping
Multicast VLAN Register (MVR)
Up to 4K multicast groups (IPv4 + IPv6) |
| Access Control List |
Supports Standard and Expanded ACL
IP-based ACL/MAC-based ACL
Time-based ACL
Up to 1K entries |
| Security |
Port isolation
Supports IP + MAC + port binding
Identification and filtering of L2/L3/L4 based ACL
Defend against DOS or TCP attacks
Suppression of broadcast, multicast and unknown unicast packet
DHCP Snooping, DHCP Option 82
Command line authority control based on user levels |
| Authentication |
IEEE 802.1x port-based network access control
AAA authentication: TACACS+ and IPv4/IPv6 over RADIUS |
| Management Function |
| System Configuration |
Console, Telnet, SSHv2, Web browser, SSL, SNMP v1, v2c and v3 |
| Secure Management Intefaces |
SSHv1/v2, SSL, SNMPv3 |
| Management |
Supports both IPv4 and IPv6 addressing
Supports the user IP security inspection for IPv4/IPv6 SNMP
Supports MIB and TRAP
Supports IPv4/IPv6 FTP/TFTP
Supports IPv4/IPv6 NTP
Supports RMON 1, 2, 3, 9 four groups
Supports the RADIUS authentication for IPv4/IPv6 Telnet user name and password
Supports IPv4/IPv6 SSH
The right configuration for users to adopt RADIUS server’s shell management
Supports CLI, console, Telnet
Supports SNMP v1, v2c and v3
Supports Security IP safety net management function: avoid unlawful landing at nonrestrictive area
Supports Syslog server for IPv4 and IPv6
Supports TACACS+
Supports IPv4 and IPv6 DHCP server |
| IP Cluster (Stacking) Compatibility List |
XGS3-24242v2
XGS3-24042v3
SGS-6341-24T4Xv2
SGS-6341-24P4Xv2
SGS-6341-16S8C4XR
SGS-6341-48T4X
XGS-5240-24X2QR |
| Hardware Stacking Compatibility List |
SGS-6341-24T4Xv2
SGS-6341-24P4Xv2
SGS-6341-16S8C4XR
SGS-6341-48T4X |
| SNMP MIBs |
RFC 1213 MIB-II
RFC 1215 Internet Engineering Task Force
RFC 1271 RMON
RFC 1354 IP-Forwarding MIB
RFC 1493 Bridge MIB
RFC 1643 Ether-like MIB
RFC 1907 SNMP v2
RFC 2011 IP/ICMP MIB
RFC 2012 TCP MIB
RFC 2013 UDP MIB
RFC 2096 IP forward MIB
RFC 2233 if MIB
RFC 2452 TCP6 MIB
RFC 2454 UDP6 MIB
RFC 2465 IPv6 MIB
RFC 2466 ICMP6 MIB
RFC 2573 SNMP v3 notify
RFC 2574 SNMP v3 vacm
RFC 2674 Bridge MIB Extensions (IEEE 802.1Q MIB)
RFC 2674 Bridge MIB Extensions (IEEE 802.1P MIB) |
| Standard Conformance |
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3z Gigabit 1000BASE-SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3ae 10Gb/s Ethernet
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1ag CFM
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X port authentication network control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 793 TCP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP v1
RFC 2236 IGMP v2
RFC 3376 IGMP v3
RFC 2710 MLD v1
FRC 3810 MLD v2
RFC 2328 OSPF v2
RFC 1058 RIP v1
RFC 2453 RIP v2
ITU-T G.8032 ERPS Ring |
| Environment |
| Operating |
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 90% (non-condensing) |
