Hardware Specifications
|
|
|
Copper Ports
|
24 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X ports
|
|
SFP/mini-GBIC Slots
|
4 x 100/1000BASE-X SFP interfaces with Port-25 to Port-28.
Supports 100/1000Mbps dual mode and DDM
|
|
Console
|
1 x RS-232-to-RJ45 serial port (115200, 8, N, 1)
|
|
Reset Button
|
< 5 sec: System reboot
> 5 sec: Factory default
|
|
Dimensions (W x D x H)
|
441 x 207 x 44 mm, 19-inch, 1U height
|
|
Weight
|
2.1kg
|
|
ESD Protection
|
Contact Discharge 4KV DC
Air Discharge 8KV DC
|
|
Enclosure
|
Metal
|
|
Power Requirements
|
AC 100~240V, 50/60Hz, auto-sensing
|
|
Power Consumption / Dissipation
|
19.3 watts (max.)/65BTU
|
|
LED
|
System:
Power (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 24):
1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange)
100/1000Mbps SFP Interfaces (Port 25 to Port 28):
1000 LNK/ACT (Green), 100 LNK/ACT (Orange)
|
|
|
Power (Green)
|
|
Switching
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Fabric
|
56Gbps/non-blocking
|
|
Switch Throughput@64Bytes
|
41.67Mpps
|
|
Address Table
|
8K entries
|
|
Shared Data Buffer
|
4.1 megabits
|
|
Flow Control
|
IEEE 802.3x pause frame for full-duplex
Back pressure for half-duplex
|
|
Jumbo Frame
|
10K bytes
|
|
Layer 2 Functions
|
|
Port Mirroring
|
TX/RX/both
Many-to-1 monitor
Up to 4 sessions
|
|
VLAN
|
802.1Q tagged-based VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
|
|
Link Aggregation
|
IEEE 802.3ad LACP/Static Trunk
Supports 8 trunk groups with 8 ports per trunk
|
|
Spanning Tree Protocol
|
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
|
|
IGMP Snooping
|
IGMP (v2/v3) Snooping
IGMP Querier
Up to 256 multicast groups
|
|
MLD Snooping
|
MLD (v1/v2) Snooping, up to 256 multicast groups
|
|
QoS
|
8 mapping ID to 8 level priority queues
- Port number
- 802.1p priority
- 802.1Q VLAN tag
- DSCP field in IP packet
Traffic classification based, strict priority and WRR
Supports ERPS, and complies with ITU-T G.8032
|
|
Ring
|
Supports ERPS, and complies with ITU-T G.8032
|
|

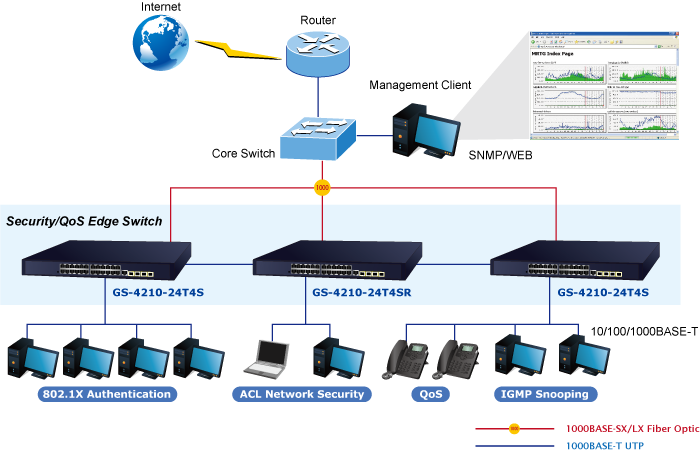

Security Functions
|
|
Access Control List
|
IPv4/IPv6 IP-based ACL/MAC-based ACL
|
|
Port Security
|
IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
|
|
MAC Security
|
IP-MAC port binding
MAC filter
Static MAC address
|
|
Enhanced Security
|
DHCP Snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
|
|
Management Functions
|
|
Basic Management Interfaces
|
RS232 to RJ45 Console
Web browser
Telnet
SNMP v1, v2c
|
|
Secure Management Interfaces
|
SSHv2, TLS v1.2, SNMP v3
|
|
System Management
|
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer
|
|
Event Management
|
Remote/Local Syslog
System log
|
|
SNMP MIBs
|
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
|
|
Standards Conformance
|
|
Regulatory Compliance
|
FCC Part 15 Class A, CE
|
|
Standards Compliance
|
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX/100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree protocol
IEEE 802.1w Rapid Spanning Tree protocol
IEEE 802.1s Multiple Spanning Tree protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1x Port Authentication Network Control
IEEE 802.1ab LLDP
IEEE 802.3az Energy Efficient Ethernet (EEE)
RFC 768 UDP
RFC 793 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
|
|
Environment
|
|
Operating
|
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
|
Storage
|
Temperature: -20 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
