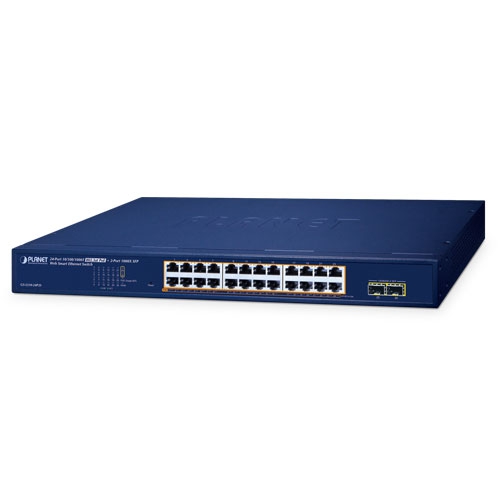

| Hardware Specifications |
| Copper Ports |
24 10/100/1000BASE-T RJ45 copper ports |
| PoE Injector Port |
24 ports with 802.3af/802.3at PoE+ injector function |
| SFP Slots |
2 x 100/1000BASE-X SFP interface |
| Flash Memory |
16Mbytes |
| Reset Button |
< 10 sec: System reboot |
| |
> 10 sec: Factory default |
| ESD Protection |
Contact ±6KV , Air ±8KV |
| Surge Protection |
Differential mode ±2KV , Common mode ±4KV |
| Dimensions (W x D x H) |
440 x 207 x 44mm |
| Weight |
2500g |
| Power Consumption |
9.4 watts/32BTU (System) |
| |
297 watts/1012 BTU (System + PoE) |
| Power Requirements |
AC 100~240V, 50/60Hz |
| Fan |
2 |
| LED |
System: |
| |
PWR (Green) |
| |
PoE Usage 80% (Green) |
| |
Ports: |
| |
LNK/ACT (Green) |
| |
PoE-in-Use (Amber) |
| Switching Specifications |
|
| Switch Architecture |
Store-and-forward |
| Switch Fabric |
52Gbps/non-blocking |
| Switch Throughput |
38.68Mpps |
| Address Table |
8K MAC address table with auto-learning, auto-aging |
| Shared Data Buffer |
4.1MB |
| Jumbo Frame |
10KBytes |
| Flow Control |
Back pressure for half duplex |
| |
IEEE 802.3x pause frame for full duplex |
| Power over Ethernet Specifications |
| PoE Standard |
IEEE 802.3at PoE+ PSE |
| PoE Power Supply Type |
End-span |
| PoE Power Output |
32W (max.) |
| Power Pin Assignment |
1/2(+), 3/6(-) |
| PoE Power Budget |
260 watts (max.) |
| Layer 2 Functions |
|
| Port Configuration |
EEE Green energy savings disable/enable |
| |
Port disable/enable/reboot |
| |
Flow control disable/enable |
| |
Bandwidth control on each port |
| |
Port loopback protection |
| Port Status |
Display each port’s speed duplex mode, |
| |
Display link status |
| |
Display flow control status |
| |
Display auto negotiation status |
| |
Display Green energy saving status |
| Port Mirroring |
In / Out / All |
| |
Many-to-1 monitor |
| VLAN |
802.1Q tagged VLAN, up to 16 VLAN groups |
| Bandwidth Control |
TX/RX/Both |
| Link Aggregation |
static trunk |
| |
Supports 8 groups with 8 ports per trunk group |
| QoS |
8 priority queues on all switch ports |
| |
Supports strict priority and Weighted Round Robin (WRR) CoS policies |
| |
Traffic classification: |
| |
IEEE 802.1p CoS/ToS |
| |
IPv4 DSCP |
| |
Port-based WRR |
| Multicast |
IPv4 IGMP v1/v2 snooping |
| |
Up to 256 |
| Security Functions |
|
| Security |
Port isolation |
| |
DHCP Snooping |
| Switch Management Functions |
|
| System Configuration |
Telnet, Web browser |
| Management |
Authentication for IPv4 Telnet user name and password |
| |
Telnet |
| |
Cable Diagnostics |
| |
IP address or domain name Ping Test |
| |
NTP (Network Time Protocol) |
| |
PLANET Smart Discovery Utility |
| |
PLANET NMS |
| |
PLANET NMSViewerPro |
| Standard Conformance |
|
| Regulatory Compliance |
FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T |
| |
IEEE 802.3u 100BASE-TX |
| |
IEEE 802.3z Gigabit 1000BASE-SX/LX |
| |
IEEE 802.3ab Gigabit 1000BASE-T |
| |
IEEE 802.3x flow control and back pressure |
| |
IEEE 802.1p Class of Service |
| |
IEEE 802.1Q VLAN tagging |
| |
IEEE 802.3af Power over Ethernet |
| |
IEEE 802.3at Power over Ethernet PLUS |
| |
RFC 783 TFTP |
| |
RFC 791 IP |
| |
RFC 792 ICMP |
| |
RFC 2068 HTTP |
| |
RFC 1112 IGMP v1 |
| |
RFC 2236 IGMP v2 |
| Environment |
|
| Operating |
Temperature: 0 ~ 50 degrees C |
| |
Relative Humidity: 5 ~ 90% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C |
| |
Relative Humidity: 5 ~ 90% (non-condensing) |
