Item
|
Specification
|
|
Part numbers
|
Cisco Catalyst access points
|
|
● CW9166I-x: Cisco Catalyst 9166 Series with integrated, omni-directional antennas
|
|

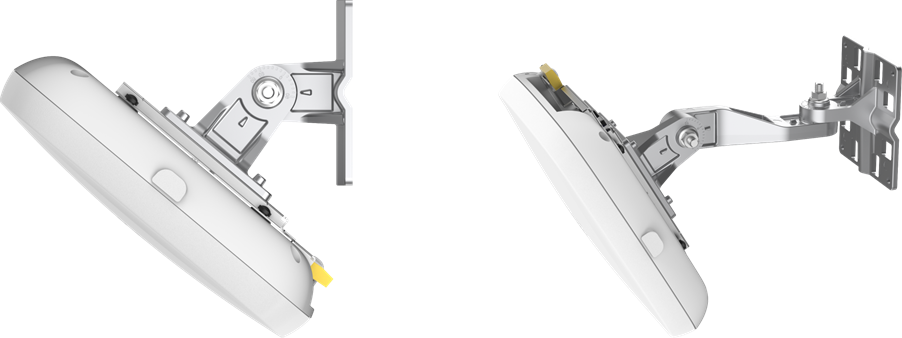

● CW9166D1-x: Cisco Catalyst 9166 Series with integrated, directional antennas
|
|
Regulatory domains: (x = regulatory domain)
|
|
Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country,
|
|
visit https://www.cisco.com/go/aironet/compliance.
|
|
Not all regulatory domains have been approved. As they are approved, the part numbers will be available on the Global Price List and/or regional price lists.
|
|
● CW9166I-MR: Cisco Catalyst 9166 Series, w/Meraki
|
|
● CW9166D1-MR: Cisco Catalyst 9166 Series, w/Meraki
|
|
Cloud-managed version using Meraki Dashboard
|
|
Cisco wireless LAN services
|
|
● For details on optional WLAN Services, visit Services for Wireless and Mobility
|
|
Software
|
Catalyst 9166I
|
|
● Cisco IOS ® XE Software Release 17.9.1 or later
|
|
Catalyst 9166D1
|
|
● Cisco IOS® XE Software Release 17.12.1 or later
|
|
Supported wireless LAN controllers
|
● Cisco Catalyst 9800 Series Wireless Controllers (physical or virtual)
|
|
● Cisco Catalyst 9000 switches with Embedded Wireless Controller in SDA mode
|
|
802.11n version 2.0 (and related) capabilities
|
● 4x4 MIMO with four spatial streams
|
|
● Maximal Ratio Combining (MRC)
|
|
● 802.11n and 802.11a/g
|
|
● 20- and 40-MHz channels
|
|
● PHY data rates up to 1.5 Gbps (40 MHz with 5GHz and 20 MHz with 2.4GHz)
|
|
● Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)
|
|
● 802.11 Dynamic Frequency Selection (DFS)
|
|
● Cyclic Shift Diversity (CSD) support
|
|
802.11ac
|
● 4x4 downlink MU-MIMO with four spatial streams
|
|
● MRC
|
|
● 802.11ac beamforming
|
|
● 20-, 40-, 80-, and 160-MHz channels
|
|
● PHY data rates up to 3.4 Gbps (Dual 4x4 80+80 MHz on 5GHz)
|
|
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
|
|
● 802.11 DFS
|
|
● CSD support
|
|
● Wi-Fi Protected Access (WPA) 3 support
|
|
802.11ax
|
● 1024 QAM
|
|
● 4x4 uplink/downlink MU-MIMO with four spatial streams (2.4GHz, 5GHz and 6GHz)
|
|
● Uplink/downlink OFDMA
|
|
● TWT
|
|
● BSS coloring
|
|
● MRC
|
|
● 802.11ax beamforming
|
|
● 20-, 40-, 80-, and 160-MHz channels (6GHz)
|
|
● 20-, 40-, 80-, and 80+80-MHz channels (5GHz)
|
|
● 20-MHz channels (2.4GHz)
|
|
● PHY data rates up to 7.78 Gbps (4x4 160 MHz on 6GHz, 4x4 80 MHz on 5GHz, and 4x4 20 MHz on 2.4GHz)
|
|
● Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)
|
|
● 802.11 DFS
|
|
● CSD support
|
|
● WPA3 support
|
|
Antennas
|
Catalyst 9166I
|
|
● 2.4GHz: Peak gain 3 dBi, internal antenna, omnidirectional in azimuth
|
|
● 5GHz: Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
|
|
● 5GHz (XOR): Peak gain 5 dBi, internal antenna, omnidirectional in azimuth
|
|
● 6GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth
|
|
Catalyst 9166D1
|
|
● 2.4GHz: Peak gain 6 dBi, directional antenna, (70x70)
|
|
● 5GHz: Peak gain 6 dBi, directional antenna, (70x70)
|
|
● 5GHz (XOR): Peak gain 8 dBi, directional antenna, (60x60)
|
|
● 6GHz: Peak gain 8 dBi, directional antenna, (60x60)
|
|
Interfaces
|
● Catalyst 9166 Series: 1x 100M/1000M/2.5G/5G Multigigabit Ethernet (RJ-45)
|
|
● Management console port (RJ-45)
|
|
● USB 2.0 at 4.5W
|
|
Indicators
|
● Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors
|
|
Dimensions (W x L x H)
|
● Access point (without mounting brackets):
|
|
◦ Catalyst 9166I: 9.5 x 9.5 x 2.2 in. (241.3 x 241.3 x 56.9 mm)
|
|
◦ Catalyst 9166D1: 9.5 x 9.5 x 2.28 in (241.3 x 241.3 x 57.9 mm)
|
|
Weight
|
Catalyst 9166I Series
|
|
● 3.54 lb (1.60 kg)
|
|
Catalyst 9166D1
|
|
● 3.50 lb (1.59 kg)
|
|
Input power requirements
|
● 802.3bt, Cisco Universal PoE (Cisco UPOE), 802.3at Power over Ethernet Plus (PoE+)
|
|
● Cisco power injectors: AIR-PWRINJ7=, AIR-PWRINJ6=, MA-INJ-6
|
|
● 802.3af PoE (only for configuration staging, all radios off)
|
|
● DC power input (54V/MA-PWR-50WAC)
|
|
Catalyst 9166
|
|
Power Source
|
2.4GHz radio
|
5GHz radio
|
6GHz radio (LPI)
|
Link speed
|
USB
|
Max PoE Power Consumption
|
|
802.3bt
|
4x4
|
4x4
|
4x4
|
5 Gbps
|
Y (4.5W)
|
30.5.W
|
|
(UPOE)
|
|
802.3at (PoE+)
|
4x4
|
4x4
|
4x4
|
5 Gbps
|
N
|
25.5 W
|
|
802.3af (PoE)
|
–
|
–
|
–
|
1Gbps
|
N
|
14.0 W
|
|
DC power
|
4x4
|
4x4
|
4x4
|
5Gbps
|
Y(4.5W)
|
-
|
|
Catalyst 9166D1
|
|
802.3bt
|
4x4
|
4x4
|
4x4
|
5 Gbps
|
Y (4.5W)
|
30.5.W
|
|
(UPOE)
|
|
802.3at (PoE+)
|
4x4
|
4x4
|
4x4
|
5 Gbps
|
N
|
25.5 W
|
|
802.3af (PoE)
|
–
|
–
|
–
|
1Gbps
|
N
|
14.0 W
|
|
DC power
|
4x4
|
4x4
|
4x4
|
5Gbps
|
Y(4.5W)
|
-
|
|
Note: Actual power consumption may vary depending on AP usage. It is recommended that you ensure that LLDP/CDP is enabled to allow proper power negotiation.
|
|
Environmental
|
Catalyst 9166 Series
|
|
● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
|
|
● Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m)
|
|
● Operating temperature: 32° to 122°F (0° to 50°C)
|
|
● Operating humidity: 10% to 90% (noncondensing)
|
|
● Operating altitude test: 40°C (104°F) at 9843 ft (3000 m)
|
|
Catalyst 9166D1 Series
|
|
● Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)
|
|
● Nonoperating (storage) altitude test: 25°C (77°F) at 15,000 ft (4600 m)
|
|
● Operating temperature: -4° to 122°F (-20° to 50°C)
|
|
● Operating humidity: 10% to 90% (noncondensing)
|
|
● Operating altitude test: 40°C (104°F) at 9843 ft (3000 m)
|
|
System memory
|
● 2048 MB DRAM
|
|
● 1024 MB flash
|
|
Warranty
|
Limited lifetime hardware warranty (WARR-CW-LIFE-LTD)
|
|
Available transmit power settings
|
2.4GHz
|
5GHz
|
6GHz
|
|
● 23 dBm (200 mW)
|
● 23 dBm (200 mW)
|
● 23 dBm (200 mW)
|
|
● -4 dBm (0.39 mW)
|
● -4 dBm (0.39 mW)
|
● -4 dBm (0.39 mW)
|
|
|
|
Note: In countries where use of the 6GHz band is not allowed or authorized or if there is no current software support, the 6GHz radio will be disabled and will switch to a 5GHz and operate as a dual 5GHz access point. The 6GHz radio may be enabled with future software, once the product is certified to operate at 6GHz for that country.
|
|
|
|
Numbers above are Low Power Indoor (LPI).
|
|
Regulatory domains
|
Note: Customers are responsible for verifying approval for use in their individual countries. To verify approval and to identify the regulatory domain that corresponds to a particular country,
|
|
visit https://www.cisco.com/go/aironet/compliance.
|
|
Compliance standards
|
● Safety:
|
● Radio:
|
|
◦ IEC 60950-1 / IEC 62368-1 Ed.3 (with Ed.2 Deviation annex)
|
◦ EN 300 328 (v2.2.2)
|
|
◦ EN 60950-1 / EN 62368-1 Ed.3 (with Ed.2 Deviation annex)
|
◦ EN 301 893 (v2.1.1)
|
|
◦ UL 60950-1 / UL62368-1 3rd (with Ed.2 Deviation annex)
|
◦ EN 303 687 (v0.0.14, draft)
|
|
◦ CAN/CSA-C22.2 No. 60950-1 / CAN/CSAC22.2 No. 62368-1 3rd (with Ed.2 Deviation annex)
|
◦ AS/NZS 4268 (rev. 2017)
|
|
◦ AS/NZS60950.1 / AS/NZS62368.1 Ed.3 (with Ed.2 Deviation annex)
|
◦ 47 CFR FCC Part 15C, 15.247, 15.407
|
|
◦ UL 2043
|
◦ RSP-100
|
|
◦ Class III equipment
|
◦ RSS-GEN
|
|
● Emissions:
|
◦ RSS-247
|
|
◦ CISPR 32 (rev. 2015) +AMD1:2019
|
◦ LP002
|
|
◦ EN 55032:2015/A11:2020
|
◦ Japan Std. 66, and Std. 71
|
|
◦ EN IEC 61000-3-2:2019/A1:2021
|
● RF safety:
|
|
◦ EN61000-3-3:2013+A1:2019
|
◦ EN 50385:2017
|
|
◦ AS/NZS CISPR32: 2015+AMD1:2020
|
◦ EN 62311:2020
|
|
◦ 47 CFR FCC Part 15B
|
◦ AS/NZS 2772.2 (rev. 2016)
|
|
◦ ICES-003 (Issue 7, Class B)
|
◦ 47 CFR Part 2.1091
|
|
◦ VCCI-CISPR 32:2016
|
◦ RSS-102
|
|
◦ CNS 13438:2006 (95)
|
● IEEE standards:
|
|
◦ KS C 9832:2019
|
◦ IEEE 802.3
|
|
● Immunity:
|
◦ IEEE 802.3ab
|
|
◦ EN 55035: 2017+A11:2020
|
◦ IEEE 802.3af/at/bt
|
|
◦ KS C 9835:2019
|
◦ IEEE 802.11a/b/g/n/ac/ax
|
|
◦ Emissions and immunity:
|
◦ IEEE 802.11h, 802.11d
|
|
◦ EN 301 489-1 V2.2.3 (2019-11)
|
● Security
|
|
◦ EN 301 489-17 V3.2.4 (2020-09)
|
◦ WPA2-Personal (802.11i)
|
|
◦ QCVN 112:2017/BTTTT
|
◦ WPA2-Enterprise with 802.1X
|
|
◦ KS X 3124:2020
|
◦ WPA3-Personal, WPA3-Enterprise
|
|
◦ KS X 3126:2020
|
◦ WPA3-Enhanced Open (OWE)
|
|
◦ EN 61000-6-1: 2019
|
◦ Advanced Encryption Standard (AES)
|
|
|
● Extensible Authentication Protocol (EAP) types:
|
|
|
◦ EAP-Transport Layer Security (TLS)
|
|
|
◦ EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2
|
|
|
◦ Protected EAP (PEAP) v0 or EAP-MSCHAP v2
|
|
|
◦ EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)
|
|
|
◦ PEAP v1 or EAP-Generic Token Card (GTC)
|
|
|
◦ EAP-Subscriber Identity Module (SIM)
|
|
Certifications
|
● Wi-Fi Alliance: Wi-Fi 6 (R2), Wi-Fi 6E, WPA3-R3, WPA3-Suite B, Enhanced Open Security
|
|
● Bluetooth SIG: Bluetooth Low Energy (BLE)
|
