Hardware Specifications
|
|
Hardware Version
|
4
|
|
Copper Ports
|
8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 8)
|
|
SFP Ports
|
12 100/1000BASE-X SFP interfaces (Ports 9 to 20)
|
|
Compatible with 100BASE-FX SFP transceivers
|
|
SFP+ Ports
|
4 10GBASE-SR/LR SFP+ interfaces (Ports XG1 to XG4)
|
|
Backward compatible with 100M/1G/2.5GBASE-SX/LX/BX transceivers
|
|
Console
|
1 x RS232-to-RJ45 serial port (115200, 8, N, 1)
|
|
Reset Button
|
< 5 sec: System reboot
|
|
> 5 sec: Factory default
|
|
Terminal Block
|
Removable 6-pin terminal block
|
|
Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2
|
|
Removable 6-pin terminal block for DI/DO interface
|
|
Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND
|
|
Alarm
|
One relay output for port breakdown and power failure.
|
|
Alarm relay current carry ability: 1A @ 24V AC
|
|
Digital Input (DI)
|
2 digital input (DI)
|
|
Level 0: -24V~2.1V (±0.1V)
|
|
Level 1: 2.1V~24V (±0.1V)
|
|
Input load to 24V DC, 10mA max.
|
|
Digital Output (DO)
|
2 digital output (DO)
|
|
Open collector to 24V DC, 100mA max.
|
|
Enclosure
|
IP30 metal case
|
|
Installation
|
Rack-mount kit
|
|
Dimensions (W x D x H)
|
444 x 200 x 44 mm, 1U height
|
|
Weight
|
2756g
|
|
Power Requirements
|
DC: 36-60V, 1.5A (max.)
|
|
AC: 100~240V, 50/60Hz, 1.5A (max.)
|
|
Power Consumption/ Dissipation
|
DC：Max. 13.6 watts / 46.5 BTU (system on)
|
|
Max. 38.4 watts / 131.1 BTU (Full loading)
|
|
AC：Max. 11.2 watts / 38.3 BTU (system on)
|
|
Max. 45.6 watts / 155.6 BTU (Full loading)
|
|
EFT Protection
|
6KV DC
|
|
ESD Protection
|
6KV DC
|
|
Fan
|
2 smart fans
|
|
LED
|
System:
|
|
DC1 (Green)
|
|
DC2 (Green)
|
|
AC (Green)
|
|
Alarm (Red)
|
|
|
|
Per 10/100/1000T RJ45:
|
|
Up: 1000 LNK/ACT (Green)
|
|
Down: 10/100 LNK/ACT (Amber)
|
|
|
|
Per 100/1G SFP Interface:
|
|
Up: 1000 LNK/ACT (Green)
|
|
Down: 100 LNK/ACT (Amber)
|
|
|
|
Per 10G SFP+ Interface:
|
|
Up: 1G/2.5G LNK/ACT (Green)
|
|
Down: 100/10G LNK/ACT (Amber)
|
|
Switching Specifications
|
|
Switch Architecture
|
Store-and-forward
|
|
Switch Fabric
|
120Gbps/non-blocking
|
|
Switch Throughput@64Bytes
|
89.28Mpps @64Bytes
|
|
Address Table
|
16K MAC address table with auto learning function
|
|
Shared Data Buffer
|
12Mbits
|
|
Flow Control
|
IEEE 802.3x pause frame for full duplex
|
|
Back pressure for half duplex
|
|
Jumbo Frame
|
12KBytes
|
|
Layer 2 Functions
|
|
Port Mirroring
|
TX/RX/both
|
|
Many-to-1 monitor
|
|
Up to 4 sessions
|
|
VLAN
|
802.1Q tag-based VLAN
|
|
802.1ad Q-in-Q tunneling (VLAN stacking)
|
|
Voice VLAN
|
|
Protocol VLAN
|
|
Private VLAN (Protected port)
|
|
GVRP
|
|
Up to 256 VLAN groups, out of 4094 VLAN IDs
|
|
Link Aggregation
|
IEEE 802.3ad LACP/Static Trunk
|
|
Static Port Trunking, (Max. 8 groups with 8 ports for each group)
|
|
Dynamic LACP (Max. 8 groups with 8 ports for each group)
|
|
Spanning Tree Protocol
|
IEEE 802.1D Spanning Tree Protocol (STP)
|
|
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
|
|
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP)
|
|
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
|
|
IGMP Snooping
|
IPv4 IGMP (v2/v3) Snooping
|
|
IGMP Querier
|
|
Up to 256 multicast groups
|
|
MLD Snooping
|
IPv6 MLD snooping v2, v3, up to 256 multicast groups
|
|
QoS
|
8 mapping ID to 8 level priority queues
|
|
Port number
|
|
802.1p priority
|
|
802.1Q VLAN tag
|
|
DSCP/IP precedence of IPv4/IPv6 packets
|
|
Traffic classification based, strict priority and WRR
|
|
Ingress/Egress Rate Limit per port bandwidth control
|
|

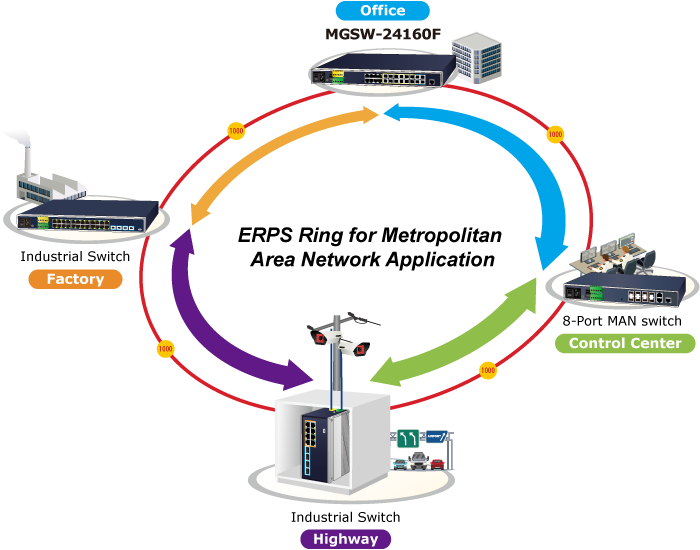

Ring
|
Supports ERPS, and complies with ITU-T G.8032
|
|
Recovery time < 450ms
|
|
Layer 3 Functions
|
|
IP Interfaces
|
Max. 64 VLAN interfaces
|
|
Routing Table
|
Max. 32 routing entries
|
|
Routing Protocols
|
IPv4 hardware static routing
|
|
IPv6 hardware static routing
|
|
Security Functions
|
|
Access Control List
|
IPv4/IPv6 IP-based ACL/MAC-based ACL
|
|
IPv4/IPv6 IP-based ACE/MAC-based ACE
|
|
Max. 256 ACL entries
|
|
Port Security
|
Built-in RADIUS client to co-operate with RADIUS server
|
|
RADIUS/TACACS+ user access authentication
|
|
MAC Security
|
IP-MAC port binding
|
|
MAC filter
|
|
Static MAC address, max. 256 static MAC entries
|
|
Enhanced Security
|
DHCP Snooping and DHCP Option82
|
|
STP BPDU guard, BPDU filtering and BPDU forwarding
|
|
DoS attack prevention
|
|
ARP inspection
|
|
IP source guard
|
|
Management Functions
|
|
Basic Management Interfaces
|
Console/ Telnet/ Web browser/ SNMP v1, v2c
|
|
Secure Management Interfaces
|
SSHv2, TLS v1.2, SNMP v3
|
|
System Management
|
Firmware upgrade by HTTP/TFTP protocol through Ethernet network
|
|
LLDP protocol
|
|
SNTP
|
|
PLANET Smart Discovery Utility
|
|
PLANET NMS System, NMSViewerPro and CloudViewerPro App
|
|
Event Management
|
Remote/Local Syslog
|
|
System log
|
|
SNMP MIBs
|
RFC 1213 MIB-II
|
|
RFC 1215 Generic Traps
|
|
RFC 1493 Bridge MIB
|
|
RFC 2674 Bridge MIB Extensions
|
|
RFC 2737 Entity MIB (Version 2)
|
|
RFC 2819 RMON (1, 2, 3, 9)
|
|
RFC 2863 Interface Group MIB
|
|
RFC 3635 Ethernet-like MIB
|
|
Standards Conformance
|
|
Regulatory Compliance
|
FCC Part 15 Class A, CE
|
|
Standards Compliance
|
IEEE 802.3 10BASE-T
|
|
IEEE 802.3u 100BASE-TX/100BASE-FX
|
|
IEEE 802.3z Gigabit SX/LX
|
|
IEEE 802.3ab Gigabit 1000T
|
|
IEEE 802.3bz 2.5GBASE-X
|
|
IEEE 802.3ae 10Gb/s Ethernet
|
|
IEEE 802.3x Flow Control and Back Pressure
|
|
IEEE 802.3ad Port Trunk with LACP
|
|
IEEE 802.1D Spanning Tree Protocol
|
|
IEEE 802.1w Rapid Spanning Tree Protocol
|
|
IEEE 802.1s Multiple Spanning Tree Protocol
|
|
IEEE 802.1p Class of Service
|
|
IEEE 802.1Q VLAN Tagging
|
|
IEEE 802.1ab LLDP
|
|
IEEE 802.3az Energy Efficient Ethernet (EEE)
|
|
RFC 768 UDP
|
|
RFC 783 TFTP
|
|
RFC 791 IP
|
|
RFC 792 ICMP
|
|
RFC 2068 HTTP
|
|
RFC 1112 IGMP v1
|
|
RFC 2236 IGMP v2
|
|
RFC 3376 IGMP v3
|
|
RFC 2710 MLD v1
|
|
RFC 3810 MLD v2
|
|
ITU-T G.8032 ERPS Ring
|
|
Environment
|
|
Operating
|
Temperature: 0 ~ 60 degrees C for AC/DC power input
|
|
Relative Humidity: 5 ~ 95% (non-condensing)
|
|
Storage
|
Temperature: -10 ~ 70 degrees C
|
|
Relative Humidity: 5 ~ 95% (non-condensing)
|
