Hardware Specifications
|
|
Hardware Version
|
3
|
|
Copper Ports
|
48 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
|
|
SFP Ports
|
4 100/1000BASE-X SFP interfaces
|
|
Console
|
1 RS232-to-RJ45 serial port (115200, 8, N, 1)
|
|
Reset Button
|
< 5 sec: System reboot
> 5 sec: Factory default
|
|
Thermal Fan
|
Fanless design
|
|
Power Requirements
|
AC 100~240V, 50/60Hz, auto-sensing.
|
|
Power Consumption / Dissipation
|
36.1 watts/123BTU
|
|
Dimensions (W x D x H)
|
440 x 330 x 44 mm, 1U height
|
|
Weight
|
4.2 kg
|
|
Enclosure
|
Metal
|
|
ESD Protection
|
6KV DC
|
|
LED
|
System:
PWR(Power) (Green). SYS (Green)
10/100/1000T RJ45 Interfaces (Port 1 to Port 48):
1000Mbps, LNK/ACT (Green)
10/100Mbps, LNK/ACT (Orange)
100/1000Mbps SFP Interfaces (Port 49 to Port 52):
1000Mbps, LNK/ACT (Green)
100Mbps, LNK/ACT (Orange)
|
|
Switching
|
|
Switch Architecture
|
Store-and-Forward
|
|
Switch Fabric
|
104Gbps/non-blocking
|
|
Switch Throughput@64bytes
|
77.38Mpps @64bytes
|
|
Address Table
|
16K entries
|
|
Shared Data Buffer
|
12Mbit SRAM packet buffer
|
| |
Back pressure for half duplex
|
|
Jumbo Frame
|
10K bytes
|
|
Layer 2 Functions
|
|
Port Mirroring
|
TX/RX/Both
Many-to-1 monitor
|
|
VLAN
|
802.1Q tagged VLAN
Up to 256 VLAN groups, out of 4094 VLAN IDs
802.1ad Q-in-Q tunneling (VLAN stacking)
Voice VLAN
Protocol VLAN
Private VLAN (Protected port)
GVRP
Management VLAN
|
|

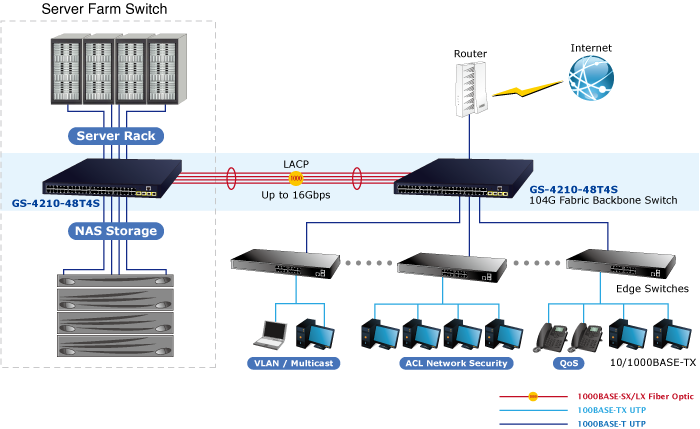

Link Aggregation
|
IEEE 802.3ad LACP and static trunk
Supports 8 trunk groups with each having 8 ports
|
|
Spanning Tree Protocol
|
STP, IEEE 802.1D Spanning Tree Protocol
RSTP, IEEE 802.1w Rapid Spanning Tree Protocol
MSTP, IEEE 802.1s Multiple Spanning Tree Protocol
STP BPDU Guard, BPDU Filtering and BPDU Forwarding
|
|
IGMP Snooping
|
IGMP (v2/v3) snooping
IGMP querier
Up to 256 multicast groups
|
|
MLD Snooping
|
IPv6 MLD (v1 / v2) snooping, up to 256 multicast groups
|
|
QoS
|
8 mapping IDs to 8 level priority queues
Port number
802.1p priority
DSCP / IP precedence of IPv4 / IPv6 packets
Traffic classification based, strict priority and WRR
Ingress / Egress Rate Limit per port bandwidth control
|
|
Ring
|
Supports ERPS, and complies with ITU-T G.8032
|
|
Security Functions
|
|
Access Control List
|
IPv4/IPv6 IP-based ACL/MAC-based ACL
IPv4/IPv6 IP-based ACE/MAC-based ACE
|
|
Port Security
|
IEEE 802.1X – Port-based authentication
Built-in RADIUS client to co-operate with RADIUS server
RADIUS/TACACS+ user access authentication
|
|
MAC Security
|
IP-MAC port binding
MAC filtering
Static MAC address
|
|
Enhanced Security
|
DHCP snooping and DHCP Option82
STP BPDU guard, BPDU filtering and BPDU forwarding
DoS attack prevention
ARP inspection
IP source guard
Storm control support
|
|
Management Functions
|
|
Basic Management Interfaces
|
RS232 to RJ45 Console
Web browser
Telnet
SNMP v1, v2c
|
|
Secure Management Interfaces
|
SSHv2, TLS v1.2, SNMP v3
|
|
System Management
|
Firmware upgrade via HTTP/TFTP protocol through Ethernet network
Configuration upload/download through HTTP / TFTP
Remote/Local Syslog
System log
LLDP protocol
SNTP
PLANET Smart Discovery Utility
PLANET NMS System/CloudViewer
|
|
SNMP MIBs
|
RFC 1213 MIB-II
RFC 1215 Generic Traps
RFC 1493 Bridge MIB
RFC 2674 Bridge MIB Extensions
RFC 2737 Entity MIB (Version 2)
RFC 2819 RMON (1, 2, 3, 9)
RFC 2863 Interface Group MIB
RFC 3635 Ethernet-like MIB
|
|
Standards Conformance
|
|
Regulatory Compliance
|
FCC Part 15 Class A, CE
|
|
Standards Compliance
|
IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX / 100BASE-FX
IEEE 802.3z Gigabit SX/LX
IEEE 802.3ab Gigabit 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.3ad port trunk with LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid Spanning Tree Protocol
IEEE 802.1s Multiple Spanning Tree Protocol
IEEE 802.1p Class of Service
IEEE 802.1Q VLAN tagging
IEEE 802.1X Port Authentication Network Control
IEEE 802.1ab LLDP
RFC 768 UDP
RFC 783 TFTP
RFC 791 IP
RFC 792 ICMP
RFC 2068 HTTP
RFC 1112 IGMP version 1
RFC 2236 IGMP version 2
RFC 3376 IGMP version 3
RFC 2710 MLD version 1
RFC 3810 MLD version 2
ITU G.8032 ERPS Ring
|
|
Environment
|
|
Operating
|
Temperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
|
Storage
|
Temperature: -10 ~ 70 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
|
