Technical Specifications
|
|
Standards
|
IEEE 802.11ax on 2.4 GHz
|
|
IEEE 802.11ax on 5 GHz
|
|
Backward compatible with 802.11a/b/g/n/ac
|
|
IEEE 802.3 u/ab
|
|
IEEE 802.3az
|
|
Antenna
|
2 x 2.4 GHz: 4dBi(Integrated Omni-Directional)
|
|
2 x 5 GHz: 5 dBi(Integrated Omni-Directional)
|
|
Scanning Radio
|
N/A
|
|
BLE
|
N/A
|
|
Physical Interfaces
|
1 x GE Port (PoE)
|
|
1 x DC Jack
|
|
1 x Reset Button
|
|
LED Indicators
|
1 x Power
|
|
1 x LAN
|
|
1 x 2.4 GHz
|
|
1 x 5 GHz
|
|
Power Source
|
Power-over-Ethernet: 802.3af Input
|
|
12VDC /1.5A Power Adapter
|
|
Maximum Power Consumption
|
12.8W
|
|
Wireless & Radio Specifications
|
|
Operating Frequency
|
Dual-Radio Concurrent 2.4 GHz & 5 GHz
|
|
Operation Modes
|
Managed mode: AP, AP Mesh, Mesh
|
|
Frequency Radio
|
2.4 GHz: 2400 MHz ~ 2482 MHz
|
|
5 GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725 MHz ~ 5850 MHz
|
|
Transmit Power
|
Up to 22 dBm on 2.4 GHz
|
|
Up to 22 dBm on 5 GHz
|
|
(Maximum power is limited by regulatory domain)
|
|
Radio Chains
|
2 × 2:2
|
|
SU-MIMO Capability
|
Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2×2 wireless client device under the 2.4GHz radio.
|
|
Two (2) spatial stream Single User (SU) MIMO for up to 1,200 Mbps wireless data rate with VHT80 to a 2×2 wireless device under the 5GHz radio.
|
|
MU-MIMO Capability
|
Two (2) spatial streams Multiple (MU)-MIMO up to 1,200 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
|
|
Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
|
|
Supported Data Rates
|
802.11ax:
|
|
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
|
|
5 GHz: 18 to 1200 (MCS0 to MCS11, NSS = 1 to 2)
|
|
802.11b: 1, 2, 5.5, 11
|
|
802.11a/g: 6, 9, 12, 18, 36, 48, 54
|
|
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
|
|
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
|
|
Supported Radio Technologies
|
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
|
|
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
|
|
802.11b: Direct-sequence spread-spectrum (DSSS)
|
|
Channelization
|
802.11ax supports high efficiency throughput (HE) —HE 20/40/80 MHz
|
|
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
|
|
802.11n supports high throughput (HT) —HT 20/40 MHz
|
|
802.11n supports high throughput under the 2.4GHz radio –HT40 MHz (256-QAM)
|
|
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
|
|
Supported Modulation
|
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
|
|
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
|
|
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
|
|
802.11b: BPSK, QPSK, CCK
|
|
DFS Certification
|
FCC/CE/IC
|
|
AirGuard (WIPS/WIDS)
|
N/A
|
|
Zero-wait DFS
|
N/A
|
|
Dedicated Scanning Radio
|
N/A
|
|
Max Concurrent User
|
512 Per radio
|
|
Client Balancing
|
Yes
|
|
Auto Channel Selection
|
Yes
|
|
Management Features
|
|
Multiple BSSID
|
8 SSIDs on both 2.4GHz and 5GHz bands
|
|
VLAN Tagging
|
Supports 802.1q SSID-to-VLAN Tagging
|
|
Cross-Band VLAN Pass-Through
|
|
Management VLAN
|
|
Spanning Tree
|
Supports 802.1d Spanning Tree Protocol
|
|
QoS (Quality of Service)
|
Compliance With IEEE 802.11e Standard
|
|
WMM
|
|
SNMP
|
v1, v2c, v3
|
|
MIB
|
I/II, Private MIB
|
|
Fast Roaming
|
802.11r/k
|
|
Wireless Security
|
WPA2-PSK
|
|
WPA2-Enterprise
|
|
WPA3-PSK
|
|
WPA3-Enterprise
|
|
Hide SSID in Beacons
|
|
Wireless STA (Client) Connected List
|
|
Client Isolation
|
|
Client Access Control
|
|
Interface
|
IPv4, IPv6
|
|
Local Web Access
|
Supports HTTP or HTTPS
|
|
Environmental & Physical
|
|
Temperature Range
|
Operating: 32ºF~104ºF (0 ºC~40 ºC)
|
|
Storage: -40 ºF~176 ºF (-40 ºC~80 ºC)
|
|
Humidity (non-condensing)
|
Operating: 90% or less
|
|
Storage: 90% or less
|
|
Dimensions & Weight
|
|
Weight
|
382 g
|
|
Dimensions
|
Width: 160 mm
|
|
Length: 160 mm
|
|
Height: 33.2 mm
|
|
Package Contents
|

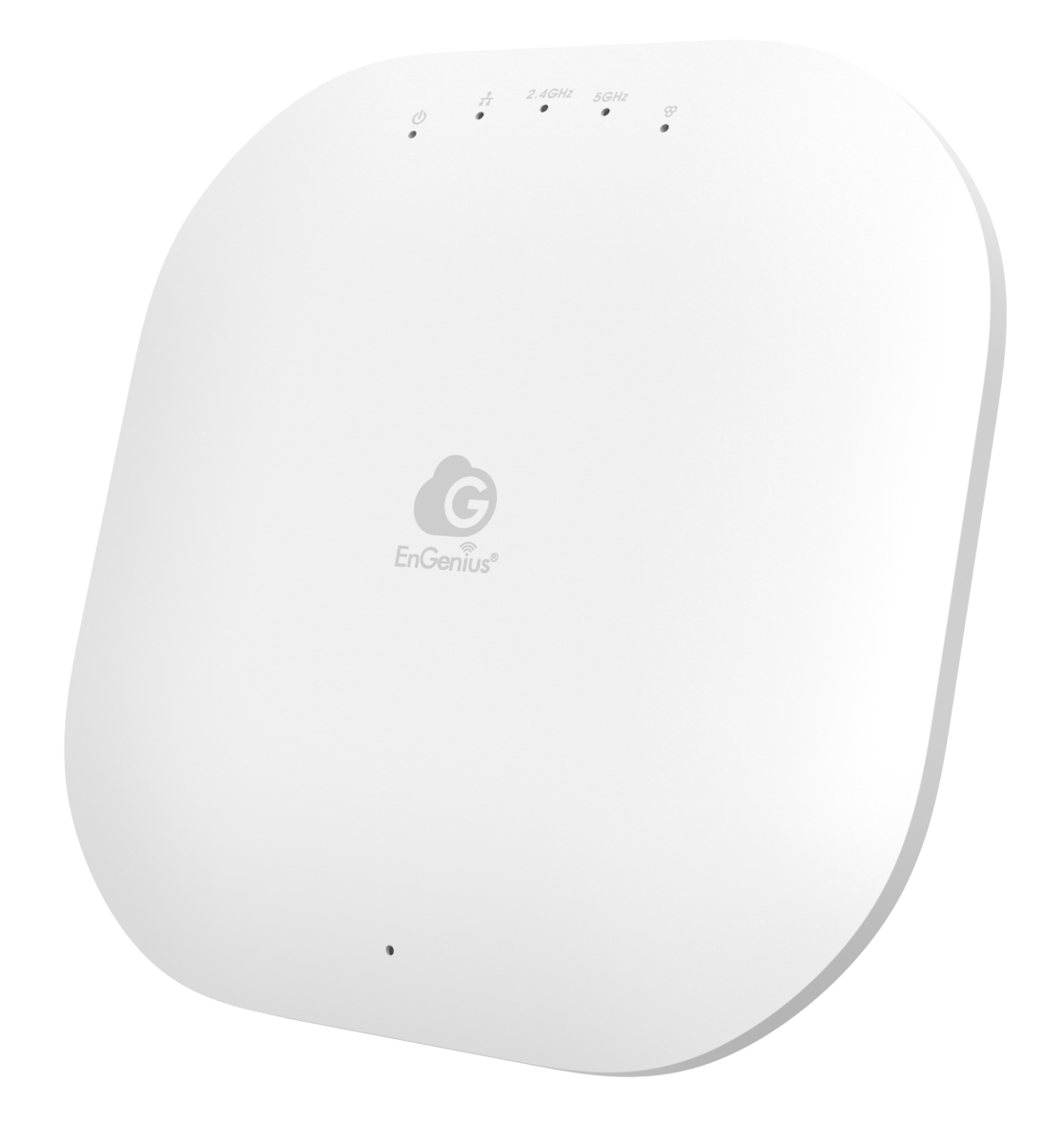

1 – ECW220 Cloud Managed Indoor Access Point
|
|
1 – Ceiling Mount Base (9/16” Trail)
|
|
1 – Ceiling Mount Base (15/16” Trail)
|
|
1 – Ceiling and Wall Mount Screw Kit
|
|
1 – Product Card
|
|
Regulatory Compliance
|
FCC
|
|
CE
|
|
IC
|
|
VCCI
|
|
AU
|
